OPA682

Wideband / Fixed Gain BUFFER AMPLIFIER With Disable

OPA682 Features

* q q q q q q q q INTERNALLY FIXED GAIN: +2 OR ±1 HIGH BANDWIDTH (G = +2): 240MHz LOW SUPPLY CURRENT: 6mA LOW DISABLED CURRENT: 320µA HIGH OUTPUT CURRENT: 150mA OUTPUT VOLTAGE SWING: ±4.0V ±5V OR SINGLE +5V OPERATION SOT23-6 AVAILABLE APPLICATIONS q q q q q q BROADBAND VIDEO LINE DRIVERS VIDEO MULTIP

OPA682 General Description

The OPA682 provides an easy to use, broadband fixed gain buffer amplifier. Depending on the external connections, the internal resistor network may be used to provide either a fixed gain of +2 video buffer or a gain of +1 or

*1 voltage buffer. Operating on a very low 6mA supply current, the .

OPA682 Datasheet (213.01 KB)

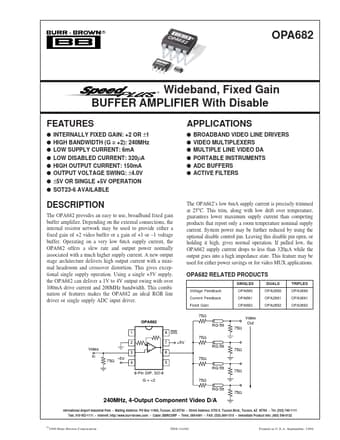

Preview of OPA682 PDF

Datasheet Details

Part number:

OPA682

Manufacturer:

Burr-Brown

File Size:

213.01 KB

Description:

Wideband / fixed gain buffer amplifier with disable.
