OPA685

Ultra-Wideband / Current-Feedback OPERATIONAL AMPLIFIER With Disable TM

OPA685 Features

* q q q q q q q GAIN = +2 BANDWIDTH (900MHz) GAIN = +8 BANDWIDTH (420MHz) OUTPUT VOLTAGE SWING: ±3.6V ULTRA-HIGH SLEW RATE: 4200V/µs 3RD-ORDER INTERCEPT: > 40dBm (f < 50MHz) LOW POWER: 129mW LOW DISABLED POWER: 3mW APPLICATIONS q q q q q q q LOW COST PRECISION IF AMPLIFIER CABLE MODEM UPSTREAM DRIVER

OPA685 General Description

The OPA685 is a very high bandwidth, current-feedback op amp that combines exceptional 4200V/µs slew rate and low input voltage noise to deliver a precision low cost, high dynamic range Intermediate Frequency (IF) amplifier. Optimized for high gain operation, the OPA685 is ideally suited to bufferin.

OPA685 Datasheet (283.76 KB)

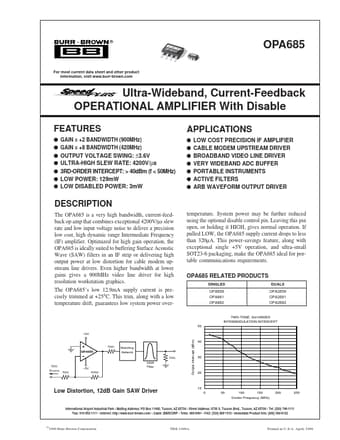

Preview of OPA685 PDF

Datasheet Details

Part number:

OPA685

Manufacturer:

Burr-Brown

File Size:

283.76 KB

Description:

Ultra-wideband / current-feedback operational amplifier with disable tm.
® OPA 685 OPA 685 OPA685 For most current data sheet and other product information, visit www.burr-brown.com Ultra-Wideband, Current-Feedback OPERA.
