OPA690 Low-Power / Single-Supply / Wideband Operational Amplifier

The OPA690 represents a major step forward in unity-gain stable, voltage feedback op amps. A new internal architecture provides slew rate and full-power bandwidth previously found only in wideband current feedback op amps. A new output stage architecture delivers high currents with a minimal headroo.

OPA690 Features

* q FLEXIBLE SUPPLY RANGE: +5V to +12V Single Supply ±2.5V to ±5V Dual Supply q UNITY-GAIN STABLE: 500MHz (G = 1) q HIGH OUTPUT CURRENT: 190mA q OUTPUT VOLTAGE SWING: ±4.0V q HIGH SLEW RATE: 1800V/µs q LOW SUPPLY CURRENT: 5.5mA q LOW DISABLED CURRENT: 100µA q WIDEBAND +5V OPERATION: 220MHz (G = 2) AP

OPA690_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: OPA690, OPA690_Burr. Please refer to the document for exact specifications by model.

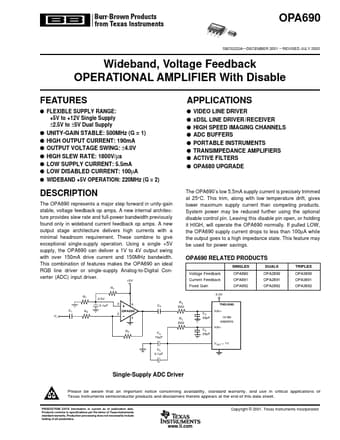

OPA690 Datasheet Preview Page 2 OPA690 Datasheet Preview Page 3
