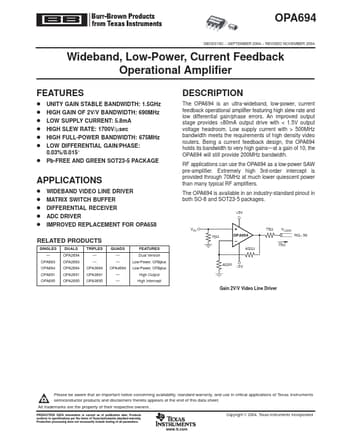

OPA694 Datasheet, Amplifier, Burr-Brown

OPA694 Features

• Amplifier D D D D D D D UNITY GAIN STABLE BANDWIDTH: 1.5GHz HIGH GAIN OF 2V/V BANDWIDTH: 690MHz LOW SUPPLY CURRENT: 5.8mA HIGH SLEW RATE: 1700V/µsec HIGH FULL-POWER BANDWIDTH: 675MHz LOW DIFFEREN

PDF File Details

Part number:

OPA694

Manufacturer:

Burr-Brown

File Size:

382.41kb

Download:

📄 Datasheet

Description:

Wideband / low-power / current feedback operational amplifier. The OPA694 is an ultra-wideband, low-power, current feedback operational amplifier featuring high slew rate and low differential gain

OPA694 Application

• Applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiesce
