OPA698

Voltage Limiting Amplifier

Burr-Brown

OPA698 Features

* q HIGH LINEARITY NEAR LIMITING q FAST RECOVERY FROM OVERDRIVE: 1ns q LIMITING VOLTAGE ACCURACY: ±10mV q

* 3dB BANDWIDTH (G = +1): 450MHz q GAIN BANDWIDTH PRODUCT: 250MHz q SLEW RATE: 1100V/µs q ±5V AND +5V SUPPLY OPERATION q HIGH-GAIN VERSION AVAILABLE: OPA699 DESCRIPTION The OPA698 is a wide

OPA698 General Description

The OPA698 is a wideband, unity-gain stable voltagefeedback op amp that offers bipolar output voltage limiting. Two buffered limiting voltages take control of the output when it attempts to drive beyond these limits. This new output limiting architecture holds the limiter offset error to ±10mV. The .

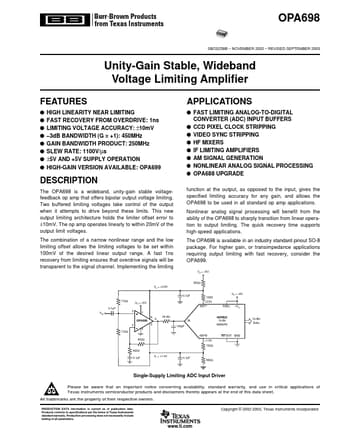

OPA698 Datasheet (476.88 KB)

OPA698 Datasheet Preview — Preview of OPA698 PDF

Datasheet Details

Part number:

OPA698

Manufacturer:

Burr-Brown

File Size:

476.88 KB

Description:

Voltage limiting amplifier.
