MX440 - Type MX Precision High Voltage Resistors

Product Overview

CADDOCK

📥 Download Datasheet

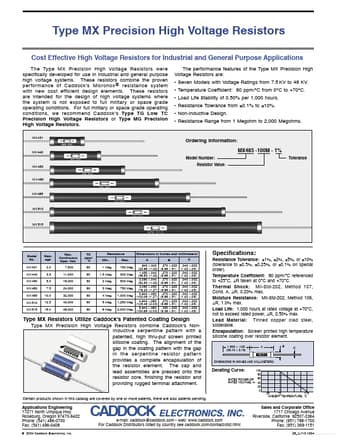

MX440 Type MX Precision High Voltage Resistors by CADDOCK - Datasheet Preview — Datasheet preview – MX440

Datasheet Details

Part number	MX440
Manufacturer	CADDOCK
File Size	134.97 KB
Description	Type MX Precision High Voltage Resistors
Datasheet	MX440 Datasheet
Note	This datasheet PDF includes multiple part numbers: MX440, MX431. Please refer to the document for exact specifications by model.
Additional preview pages of the MX440 datasheet.

Product details

Features

of the Type MX Precision High Voltage Resistors are:.
Seven Models with Voltage Ratings from 7.5 KV to 48 KV.
Temperature Coefﬁcient: 80 ppm/°C from 0°C to +70°C.
Load Life Stability of 0.50% per 1,000 hours.
Resistance Tolerance from ±0.1% to ±10%.
Non-Inductive Design.
Resistance Range from 1 Megohm to 2,000 Megohms. Ordering Information: Model Number: MX440 MX485 -100M - 1% Tolerance MX450 MX480 Resistor Value: MX485 MX510 MX5.
