MX44, MX41 Datasheet - AMI

MX44 - CMOS Gate Array

MX4x is a family of four-to-one digital multiplexers.

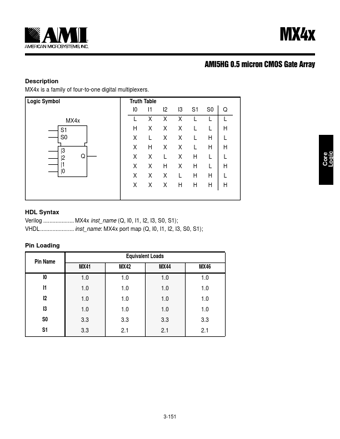

Logic Symbol MX4x S1 S0 |3 |2 Q |1 |0 Truth Table I0 I1 I2 LXX HXX XLX XHX XXL XXH XXX XXX I3 S1 S0 XLL XLL XLH XLH XHL XHL L HH HHH Q L H L H L H L H HDL Syntax Verilog MX4x inst_name (Q, I0, I1, I2, I3, S0, S1); VHDL inst_name: MX4x port

MX41-AMI.pdf

This datasheet PDF includes multiple part numbers: MX44, MX41. Please refer to the document for exact specifications by model.
MX44 Datasheet Preview Page 2 MX44 Datasheet Preview Page 3

Datasheet Details

Part number:

MX44, MX41

Manufacturer:

AMI

File Size:

35.50 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: MX44, MX41.
Please refer to the document for exact specifications by model.
