TMC2111A

Variable-Length Shift Register

TMC2111A Features

* Low power CMOS

* TMC2011A is a pin compatible replacement for the TDC1011 and TMC2011

* TMC2211A is a pin compatible replacement for the TMC2111

* Inputs and outputs are TTL compatible

* DC

* 40MHz clock rate

* Selectable delay lengths (TMC2011

TMC2111A General Description

The TMC2011A and TMC2111A are high-speed, byte-wide shift registers with programmable delay lengths. The TMC2011A can be programmed to any length between 3 and 18 stages. It offers a special split-word mode which allows for mixed delay lengths. The TMC2011A, constructed in low-power CMOS, is pin and.

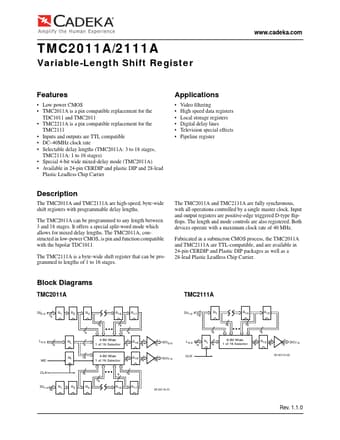

TMC2111A Datasheet (153.40 KB)

TMC2111A Datasheet Preview — Preview of TMC2111A PDF

Datasheet Details

Part number:

TMC2111A

Manufacturer:

CADEKA

File Size:

153.40 KB

Description:

Variable-length shift register.
