SD5000

High-Speed DMOS Quad FET

SD5000 Features

* Low PropagatiomTime . . . . . . . . . . . . . . . . . . . . 600 psec

* Low On Resistance

* Low Insertion Loss

* Low Capacitance:

* Analog Input . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5pF typ.

* Input (Gate) . . . . . . . . . . . . . .

SD5000 General Description

The SD5000 Series are monolithic arrays of four bidirectional, high performance analog switches manufactured with implanted high-speed, high-voltage and low resistance double-difused MOS (DMOS) process. The maximum threshold of 2V permits simple TTL and CMOS driving in small signal applications. OR.

SD5000 Datasheet (91.30 KB)

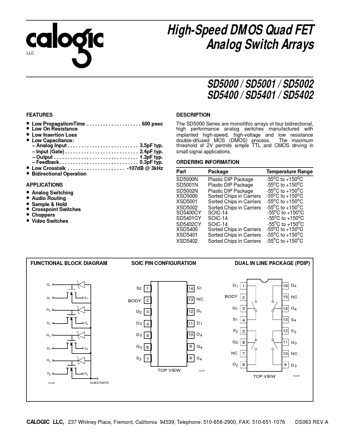

Preview of SD5000 PDF

Datasheet Details

Part number:

SD5000

Manufacturer:

CALOGIC

File Size:

91.30 KB

Description:

High-speed dmos quad fet.
