SD5000R Datasheet, Diodes, International Rectifier

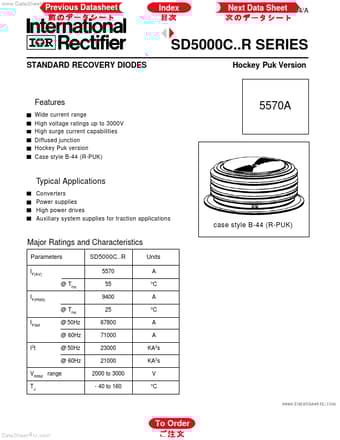

SD5000R Features

• Diodes Wide current range High voltage ratings up to 3000V High surge current capabilities Diffused junction Hockey Puk version Case style B-44 (R-PUK) 5570A Typical Applications Converters

PDF File Details

Part number:

SD5000R

Manufacturer:

International Rectifier

File Size:

271.41kb

Download:

📄 Datasheet

Description:

Standard recovery diodes.

SD5000R Application

• Applications Converters Power supplies High power drives Auxiliary system supplies for traction applications case style B-44 (R-PUK) Major Ratings
