CSD40N70 - N-Channel Trench Power MOSFET

CSD40N70 Description

N-Channel Trench Power MOSFET CSD40N70 General .
The CSD40N70 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

CSD40N70 Features

* VDS = 40V,ID =60A RDS(ON) < 9.5 mΩ @ VGS =10V RDS(ON) < 16 mΩ @ VGS =4.5V
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

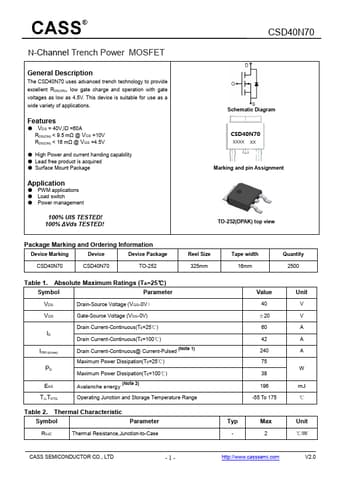

Preview of CSD40N70 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CSD40N70
Manufacturer
CASS
File Size
825.51 KB
Datasheet
CSD40N70-CASS.pdf
Description
N-Channel Trench Power MOSFET
