CSD60N70 Datasheet, Mosfet, CASS

CSD60N70 Features

• Mosfet
• VDS=60V；ID=56A@ VGS=10V； RDS(ON)<9.0mΩ @ VGS=10V
• Ultra Low On-Resistance
• High UIS and UIS 100% Test Application
• Hard Switched and High Frequency

PDF File Details

Part number:

CSD60N70

Manufacturer:

CASS

File Size:

570.04kb

Download:

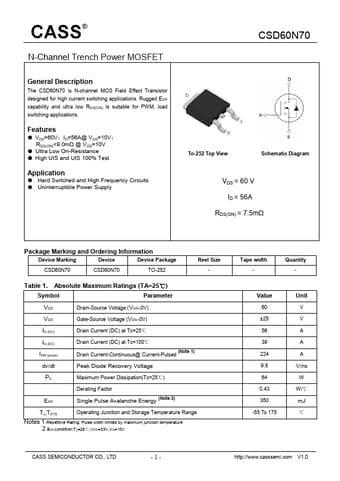

📄 Datasheet

Description:

N-channel trench power mosfet. The CSD60N70 is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ult

CSD60N70 Application

• Applications Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching applications. Features
• VDS=60V；ID=56A@ VGS=1
