2N3053

The 2N3053 is NPN SILICON PLANAR TRANSISTOR designed by CDIL.

Product Overview

CDIL

Datasheet Details

Part number	2N3053
Manufacturer	CDIL
File Size	66.18 KB
Description	NPN SILICON PLANAR TRANSISTOR
Datasheet	2N3053-CDIL.pdf
Additional preview pages of the 2N3053 datasheet.

Product details

Description

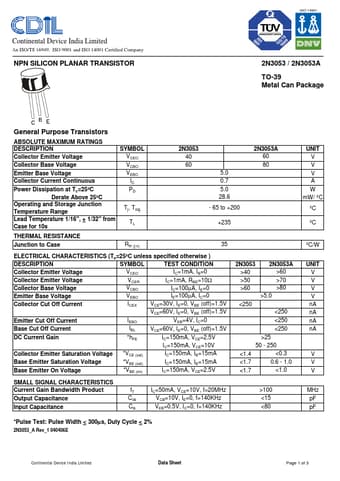

SYMBOL Collector Emitter Voltage VCEO Collector Base Voltage VCBO Emitter Base Voltage VEBO Collector Current Continuous IC Power Dissipation at Tc=25ºC PD Derate Above 25ºC Operating and Storage Junction Temperature Range Tj, Tstg Lead Temperature 1/16", + 1/32" from Case for 10s TL 2N3053 40 60 5.0 0.7 5.0 28.6 - 65 to +200 +235 2N3053A 60 80 THERMAL RESISTANCE Junction to Case Rth (j-c) 35 ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise ) DESCRIPTION S
