2N3055AG - Complementary Silicon High-Power Transistors

Datasheet Summary

Features

High Current.
Gain.
Bandwidth.
Safe Operating Area.
These Devices are Pb.
Free and are RoHS Compliant.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	2N3055AG
Manufacturer	ON Semiconductor
File Size	204.40 KB
Description	Complementary Silicon High-Power Transistors
Datasheet	2N3055AG Datasheet

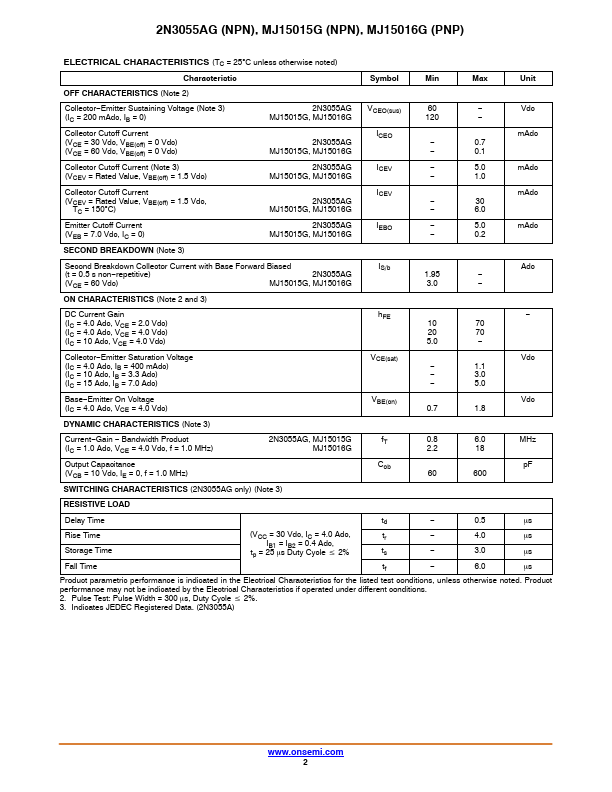

Additional preview pages of the 2N3055AG datasheet.

📁 Similar Datasheet

2N3055A - 15 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS (Motorola Inc)
2N3055 - COMPLEMENTARY SILICON POWER TRANSISTORS (STMicroelectronics)
2N3055 - NPN POWER SILICON TRANSISTOR (Microsemi Corporation)
2N3055 - COMPLEMENTARY SILICON POWER TRANSISTORS (CENTRAL SEMICONDUCTOR)
2N3055 - NPN Power Silicon Transistor (VPT)
2N3055 - Silicon NPN Power Transistors (SavantIC)
2N3055 - NPN Power Transistor (TAITRON)
2N3055 - Silicon NPN Power Transistor (NTE)
2N3055 - NPN Power Silicon Transistor (Aeroflex)
2N3055 - Complementary Power Transistors (Multicomp)

Other Datasheets by ON Semiconductor

2N3055A - Complementary Silicon High-Power Transistor
2N3055 - Complementary Silicon Power Transistors
2N3055G - Complementary Silicon Power Transistors
2N3019 - Low Power Transistor
2N3019S - Low Power Transistor
2N3439 - Low Power Transistor
2N3440 - Low Power Transistor
2N3442 - High-Power Industrial Transistors

Full PDF Text Transcription

Click to expand full text

Complementary Silicon High-Power Transistors 2N3055AG (NPN), MJ15015G (NPN), MJ15016G (PNP) These PowerBase complementary transistors are designed for high power audio, stepping motor and other linear applications. These devices can also be used in power switching circuits such as relay or solenoid drivers, dc−to−dc converters, inverters, or for inductive loads requiring higher safe operating area than the 2N3055.
