2N3055G, 2N3055 Complementary Silicon Power Transistors

2N3055G Description

2N3055(NPN), MJ2955(PNP) Preferred Device Complementary Silicon Power Transistors Complementary silicon power transistors are designed for general .

2N3055G Features

* DC Current Gain
* hFE = 20
* 70 @ IC = 4 Adc
* Collector
* Emitter Saturation Voltage
* VCE(sat) = 1.1 Vdc (Max) @ IC = 4 Adc
* Excellent Safe Operating Area
* Pb
* Free Packages are Available
* MAXIMUM RATINGS Rating Symbol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N3055G, 2N3055. Please refer to the document for exact specifications by model.

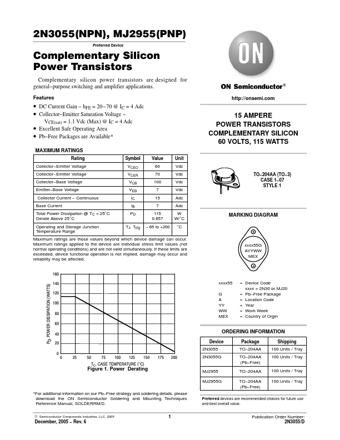

datasheet Preview Page 2 datasheet Preview Page 3
