2N6715 NPN SILICON PLANAR EPITAXIAL TRANSISTORS

Collector Cutoff Current VCB=40V, IE=0 VCB=50V, IE=0 VCB=40V, IE=0 D.C. Current Gain IC=10mA, VCE=1V IC=100mA, VCE=1V IC=1A, VCE=1V Symbol 2N6714 2N6715 2N6716 ICBO 2N6714/67.

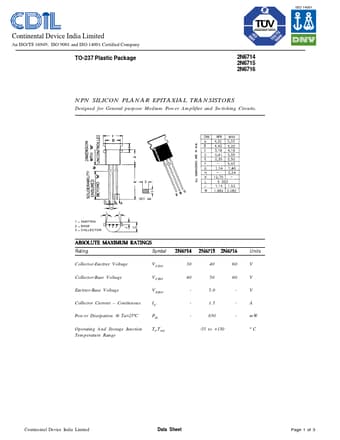

Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company TO-237 Plastic Package 2N6714 2N6715 2N6716 NPN SILICON PLANAR EPITAXIAL TRANSISTORS Designed for General purpose Medium Power Amplifier and Switching Circuits. EBC 1 = EMITTER 2 = BASE 3 = COLLECTOR 123 ABSOLUTE MAXIMUM RATINGS Rating Symbol 2N6714 2N6715 2N6716 Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Power Dissipation @ Ta=25ยบ.

2N6714-CDIL.pdf

This datasheet PDF includes multiple part numbers: 2N6715, 2N6714. Please refer to the document for exact specifications by model.
2N6715 Datasheet Preview Page 2 2N6715 Datasheet Preview Page 3

Datasheet Details

Part number:

2N6715, 2N6714

Manufacturer:

CDIL

File Size:

135.78 KB

Description:

Npn silicon planar epitaxial transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N6715, 2N6714.
Please refer to the document for exact specifications by model.
