CD81 Datasheet - CDIL

NPN SILICON POWER TRANSISTOR

CD81 General Description

SYMBOL VCBO Collector Base Voltage VCEO Collector Emitter Voltage VEBO Emitter Base Voltage IC Collector Current Collector Current (Pulse) Collector Power Dissipation Junction Temperature Storage Temperature ICP PD Tj Tstg VALUE 30 10 6.0 3.0 5.0 1.0 150 - 55 to +150 UNITS V V V A A W ºC ºC ELECT.

CD81 Datasheet (95.30 KB)

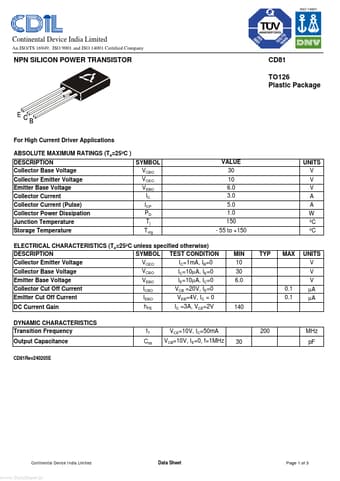

CD81 Datasheet Preview — Preview of CD81 PDF

Datasheet Details

Part number:

CD81

Manufacturer:

CDIL

File Size:

95.30 KB

Description:

Npn silicon power transistor.
Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company NPN SILICON POWER TRANSISTOR CD81 TO126 Plastic Package .
