CD80C86

The CD80C86 is CMOS 16-Bit Microprocessor designed by Intersil Corporation.

Product Overview

Intersil Corporation

📥 Download Datasheet

CD80C86 CMOS 16-Bit Microprocessor by Intersil Corporation - Datasheet Preview — Datasheet preview – CD80C86

Datasheet Details

Part number	CD80C86
Manufacturer	Intersil Corporation
File Size	339.13 KB
Description	CMOS 16-Bit Microprocessor
Datasheet	CD80C86_IntersilCorporation.pdf

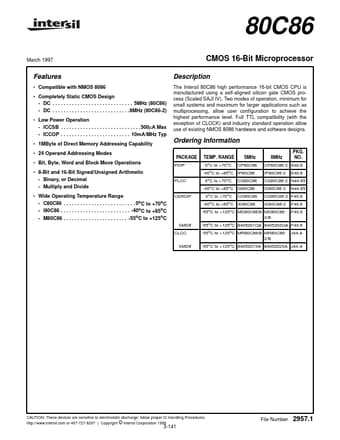

Additional preview pages of the CD80C86 datasheet.

Product details

Description

The Intersil 80C86 high performance 16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

Features

Compatible with NMOS 8086.
Completely Static CMOS Design - DC.
. . . . 5MHz (80C86) - DC.
. . .8MHz (80C86-2).
Low Power Operation - lCCSB.
. . . .500µA Max - ICCOP.
10mA/MHz Typ.
1MByte of Direct Memory Addressing Capability.
24 Operand Addressing Modes.
Bit, Byte, Wo.
