CSA950 Datasheet - CDIL

PNP SILICON PLANAR EPITAXIAL TRANSISTOR

CSA950 General Description

Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Emitter Current Collector Power Dissipation Operating And Storage Junction Temperature Range SYMBOL VCEO VCBO VEBO IC IE PC Tj, Tstg VALUE 30 35 5 800 800 600 -55 to +150 UNIT V V V mA mA mW ºC ELECTRICAL CHARAC.

CSA950 Datasheet (329.03 KB)

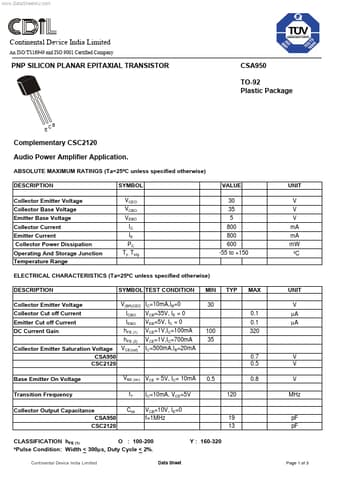

CSA950 Datasheet Preview — Preview of CSA950 PDF

Datasheet Details

Part number:

CSA950

Manufacturer:

CDIL

File Size:

329.03 KB

Description:

Pnp silicon planar epitaxial transistor.
www.DataSheet4U.com Continental Device India Limited An ISO/TS16949 and ISO 9001 Certified Company PNP SILICON PLANAR EPITAXIAL TRANSISTOR CSA950 T.
