CSA968 - Power Transistors

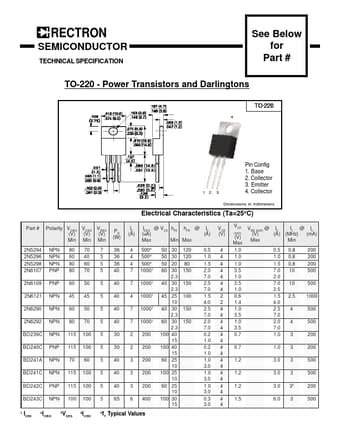

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION See Below for Part # TO-220 - Power Transistors and Darlingtons TO-220 4 12 3 Pin Config 1.
Base 2.
Collector 3.
Emitter 4.
Collector Dimensions in millimeters Electrical Characteristics (Ta=25oC) Part # Polarity VCBO VCEO VEBO (V) (V) (V) Min Min Min PD (W) IC (A) ICES @ VCE hFE hFE @ IC (uA) (A) Max Min Max VCE (V) VCE (SAT) (V) Max VBE (SAT) @ (V) Max IC (A) fT @ IC (MHz) (mA) Min 2N5294 NPN 80 70 7 36 4 5004 50 30 120 0.5 4 1.0
