CSA952 Datasheet - CDIL

PNP EPITAXIAL PLANAR SILICON TRANSISTOR

CSA952 General Description

SYMBOL VALUE BVCBO 30 Collector -Base Voltage BVCEO 25 Collector Emitter Voltage BVEBO 5.0 Emitter Base Voltage IC 700 Collector Current (DC) ICP * * 1.0 Collector Current (Peak) Ptot 600 Collector Power Dissipation Tj, Tstg -55 to +150 Operating And Storage Junction Temperature Range *

CSA952 Datasheet (87.61 KB)

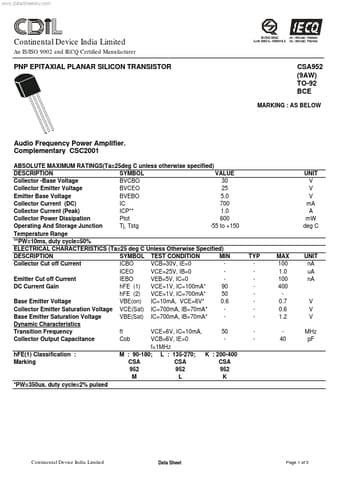

CSA952 Datasheet Preview — Preview of CSA952 PDF

Datasheet Details

Part number:

CSA952

Manufacturer:

CDIL

File Size:

87.61 KB

Description:

Pnp epitaxial planar silicon transistor.
www.DataSheet4U.com Continental Device India Limited An IS/ISO 9002 and IECQ Certified Manufacturer IS/ISO 9002 Lic# QSC/L- 000019.2 IS / IECQC 700.
