MC-7832 - (MC-7831 - MC-7833) GaAs CATV PUSH-PULL AMPLIFIER

This page provides the datasheet information for the MC-7832, a member of the MC-7831 (MC-7831 - MC-7833) GaAs CATV PUSH-PULL AMPLIFIER family.

Description

NEC's MC-7831, MC-7832, and MC-7833 are GaAs MultiChip Modules designed for use as input stages in CATV applications up to 870 MHz.

The only difference between these devices is gain, which is 18 dB, 22 dB, and 25 dB respectively.

Features

  • GaAs ACTIVE.

📥 Download Datasheet

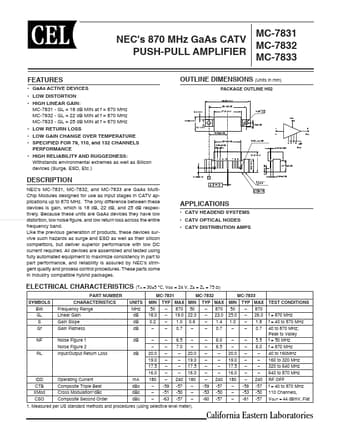

Datasheet preview – MC-7832

Datasheet Details

Part number MC-7832
Manufacturer CEL
File Size 199.55 KB
Description (MC-7831 - MC-7833) GaAs CATV PUSH-PULL AMPLIFIER
Datasheet download datasheet MC-7832 Datasheet
Additional preview pages of the MC-7832 datasheet.

📁 Similar Datasheet

  • MC-7847-KC - 25 dB POWER DOUBLER AM PLI FI ER (NEC)
  • MC-7847-KC - 870 MHz GaAs CATV 25 dB POWER DOUBLER AMPLIFIER (Celeritek)
  • MC-7852 - CATV 18 dB PUSH-PULL AMPLIFIER (NEC)
  • MC-7852G - CATV 18 dB PUSH-PULL AMPLIFIER (NEC)
  • MC-7856 - CATV 22 dB PUSH-PULL AMPLIFIER (NEC)
  • MC-7856G - CATV 22 dB PUSH-PULL AMPLIFIER (NEC)
  • MC-7862G - CATV 18 dB POWER DOUBLER AMPLIFIER (NEC)
  • MC-7866 - CATV 22 dB POWER DOUBLER AMPLIFIER (NEC)
  • MC-7881 - NECs 870 MHz GaAs CATV POWER DOUBLER AMPLIFIER (NEC)
  • MC-7882 - NECs 870 MHz GaAs CATV POWER DOUBLER AMPLIFIER (NEC)
Other Datasheets by CEL
  • MC-7832 - CATV 22 dB PUSH-PULL AMPLIFIER
  • MC-7831 - (MC-7831 - MC-7833) GaAs CATV PUSH-PULL AMPLIFIER
  • MC-7831 - CATV 18 dB PUSH-PULL AMPLIFIER
  • MC-7833 - (MC-7831 - MC-7833) GaAs CATV PUSH-PULL AMPLIFIER
  • MC-7833 - CATV 25 dB PUSH-PULL AMPLIFIER
  • MC-7834-KC - GaAs CATV 20 dB PUSH-PULL AMPLIFIER
  • MC-7834-KC - 870 MHz GaAs CATV 20 dB PUSH-PULL AMPLIFIER
  • MC-7883 - POWER DOUBLER AMPLIFIER

Full PDF Text Transcription

Click to expand full text
MC-7831 NEC's 870 MHz GaAs CATV MC-7832 PUSH-PULL AMPLIFIER MC-7833 FEATURES • GaAs ACTIVE DEVICES • LOW DISTORTION • HIGH LINEAR GAIN: MC-7831 - GL = 18 dB MIN at f = 870 MHz MC-7832 - GL = 22 dB MIN at f = 870 MHz MC-7833 - GL = 25 dB MIN at f = 870 MHz • LOW RETURN LOSS • LOW GAIN CHANGE OVER TEMPERATURE • SPECIFIED FOR 79, 110, and 132 CHANNELS PERFORMANCE • HIGH RELIABILITY AND RUGGEDNESS: Withstands environmental extremes as well as Silicon devices (Surge, ESD, Etc.) OUTLINE DIMENSIONS (Units in mm) PACKAGE OUTLINE H02 45.08 MAX 38.1±0.25 3.2 MAX 27.5 MAX 4.25 + 0.25 - 0.35 14.85 MAX 4.0±0.25 8.1 MAX 19.05±0.38 6-32 unc 2B 0.51±0.050 21.5 MAX 1 In VDD 5 9 Out 25.4±0.25 2.54±0.25 2 3 7 8 Gnd 12.9 MAX 1 2 3 5 7 8 9 2.62–0.35 10.75±0.
