PS2561DL-1

PHOTOCOUPLER

PS2561DL-1 Features

* Operating ambient temperature: 110°C

* High Isolation voltage (BV = 5 000 Vr.m.s.)

* High collector to emitter voltage (VCEO = 80 V)

* High current transfer ratio (CTR = 160% TYP.)

* High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.)

* Ordering nu

PS2561DL-1 General Description

The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2561D-1 is in a plastic DIP (Dual In-line Package) and the PS2561DL-1 is lead bending type (Gull-wing) for surface mount. The PS2561DL1-1 is lead bending type for long cree.

PS2561DL-1 Datasheet (218.98 KB)

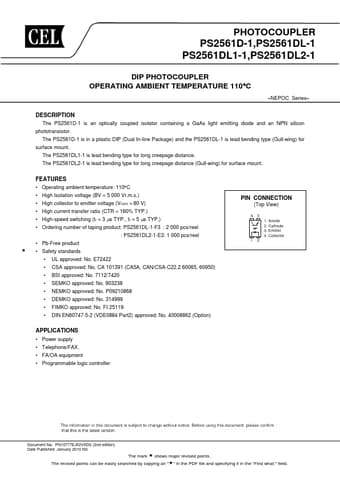

Preview of PS2561DL-1 PDF
