PS2561DL1-1, PS2561D-1, PHOTOCOUPLER

PHOTOCOUPLER PS2561D-1,PS2561DL-1 PS2561DL1-1,PS2561DL2-1 DIP PHOTOCOUPLER OPERATING AMBIENT TEMPERATURE 110°C *NEPOC Series * DESCR.
The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

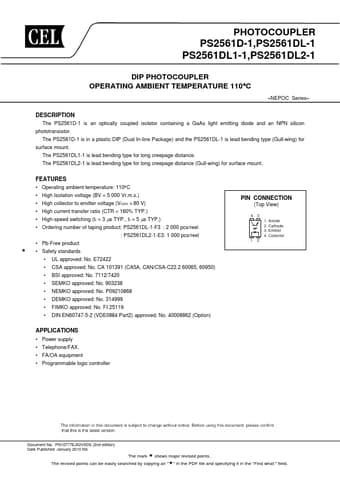

datasheet Preview Page 1 from Datasheet4u.com

PS2561D-1-CEL.pdf

PS2561DL1-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2561DL1-1, PS2561D-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS2561DL1-1, PS2561D-1

Manufacturer:

CEL

File Size:

218.98 KB

Description:

PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: PS2561DL1-1, PS2561D-1.
Please refer to the document for exact specifications by model.

Features

* Operating ambient temperature: 110°C
* High Isolation voltage (BV = 5 000 Vr. m. s. )
* High collector to emitter voltage (VCEO = 80 V)
* High current transfer ratio (CTR = 160% TYP. )
* High-speed switching (tr = 3 μs TYP. , tf = 5 μs TYP. )
* Ordering nu

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller Document No. PN10777EJ02V0DS (2nd edition) Date Published January 2010 NS The mark shows major revised points. The revised points can be easily searched by copying an "" in the PDF f
