CEB09N6 N-Channel MOSFET

CEB09N6 Description

CEP09N6/CEB09N6 CEI09N6/CEF09N6 N-Channel Enhancement Mode Field Effect Transistor .

CEB09N6 Features

* Type CEP09N6 CEB09N6 CEI09N6 CEF09N6 VDSS 600V 600V 600V 600V RDS(ON) 1.2Ω 1.2Ω 1.2Ω 1.2Ω ID 9A 9A 9A 9A e @VGS 10V 10V 10V 10V D Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is acquired. TO-220 & TO-263 & TO-262 package & TO-2

📥 Download Datasheet

Preview of CEB09N6 PDF

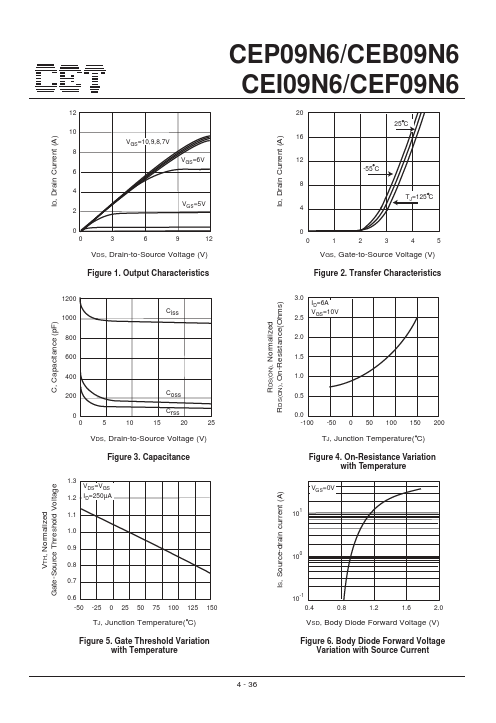

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CEB09N6
Manufacturer
CET
File Size
89.56 KB
Datasheet
CEB09N6_CET.pdf
Description
N-Channel MOSFET
