DF04, DF005-CHENG SINGLE-PHASE GLASS BRIDGE

DF04 Description

DF005 thru DF10 SERIES SINGLE-PHASE GLASS BRIDGE CHENG- YI ELECTRONIC VOLTAGE RANGE 50 TO 1000 VOLTS CURRENT 2.0 Amperes .

DF04 Features

* Surge overload rating-50 amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Polariy symbols molded on body Mounting Position: Any Glass passivated junctions UL recognized file #E149311 MAXIMUM RATINGS AND ELE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF04, DF005-CHENG. Please refer to the document for exact specifications by model.

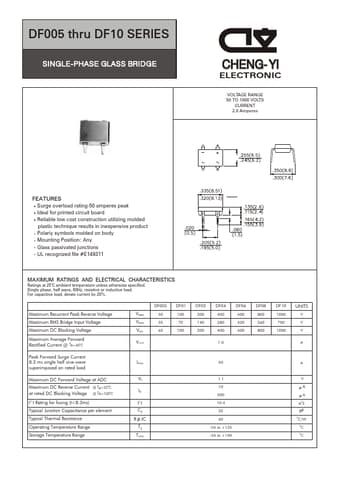

datasheet Preview Page 2

Datasheet Details

Part number
DF04, DF005-CHENG
Manufacturer
CHENG-YI
File Size
96.63 KB
Datasheet
DF005-CHENG-YI.pdf
Description
SINGLE-PHASE GLASS BRIDGE
Note
This datasheet PDF includes multiple part numbers: DF04, DF005-CHENG.
Please refer to the document for exact specifications by model.
