KBP08, KBP005-CHENG - SINGLE-PHASE SILICON BRIDGE

KBP08 Description

KBP005 thru KBP10 RS2005 thru RS210 SINGLE-PHASE SILICON BRIDGE .

KBP08 Features

* UL recognized file # E149311 Surge overload ratings-50 amperes peak Ideal for printed circuit board Plastic material has Underwriters Labooratory Flammability Classification 94V-O Mounting position: Any Lead: Silver Plated Cooper Lead. Electrically isolated base-1800Volts CHENG- YI ELECTRONIC VOLT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBP08, KBP005-CHENG. Please refer to the document for exact specifications by model.

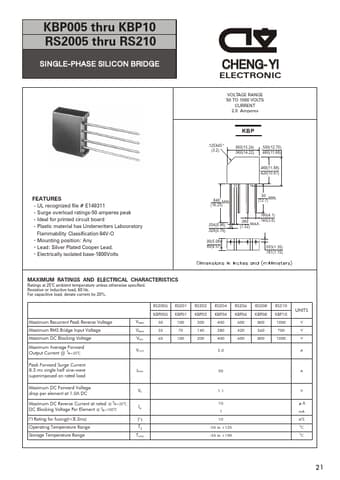

datasheet Preview Page 2

Datasheet Details

Part number
KBP08, KBP005-CHENG
Manufacturer
CHENG-YI
File Size
121.92 KB
Datasheet
KBP005-CHENG-YI.pdf
Description
SINGLE-PHASE SILICON BRIDGE
Note
This datasheet PDF includes multiple part numbers: KBP08, KBP005-CHENG.
Please refer to the document for exact specifications by model.
