RS404G, RS4005G-CHENG - SINGLE-PHASE SILICON BRIDGE

CHENG-YI

Datasheet Details

Part number	RS404G, RS4005G-CHENG
Manufacturer	CHENG-YI
File Size	93.06 KB
Description	SINGLE-PHASE SILICON BRIDGE

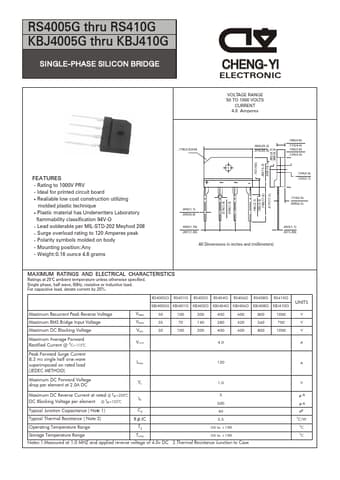

Datasheet	RS4005G-CHENG-YI.pdf
Note	This datasheet PDF includes multiple part numbers: RS404G, RS4005G-CHENG. Please refer to the document for exact specifications by model.

Rating to 1000V PRV Ideal for printed circuit board Realiable low cost construction utilizing molded plastic technique Plastic material has Underwriters Laboratory flammability classification 94V-O Lead solderable per MIL-STD-202 Meyhod 208 Surge overload rating to 120 Amperes peak Polarity symbols molded on body Mounting position:Any Weight:0.16 ounce 4.6 grams +~~- .134(3.4) .122(3.1) .145(3.7) .130(3.3) .700(17.8) .677(17.2) .043(1.1) .035(0.9) .075(1.9) .060(1.5) .114(2.9) .098(2.5) .
