| Part number | 1N5819W |
|---|---|
| Manufacturer | CHINA BASE |
| File Size | 117.96 KB |
| Description | 1A Surface Mount Schottky Barrier Diode |
| Datasheet |
 1N5819W Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: 1N5819W, 1N5817W. Please refer to the document for exact specifications by model. |
|
|

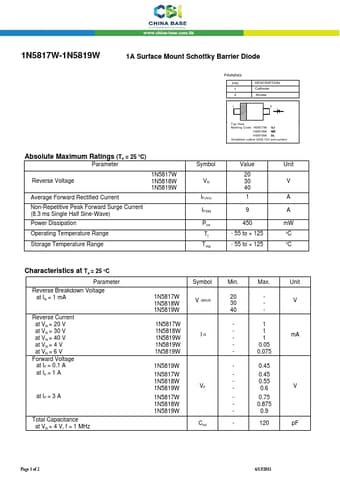

Cathode Anode 2 Absolute Maximum Ratings (Ta = 25 OC) Parameter Reverse Voltage 1N5817W 1N5818W 1N5819W Average Forward Rectified Current Non-Repetitive Peak Forward Surge Current (8.3 ms Single Half Sine-Wave) Power Dissipation Operating Temperature Range Storage Temperature Range Top View Marking Code: 1N5817W: SJ 1N5818W: ME 1N5819W: SL Simplified outline SOD-123 and symbol Symbol VR IF(AV) IFSM Ptot Tj Tstg Value 20 30 40 1 9 450 - 55 to + 125 - 55 to + 125 Unit V A A mW OC OC Ch
