CHT-NMOS8005 - 80V Power NMOSFET

📥 Download Datasheet

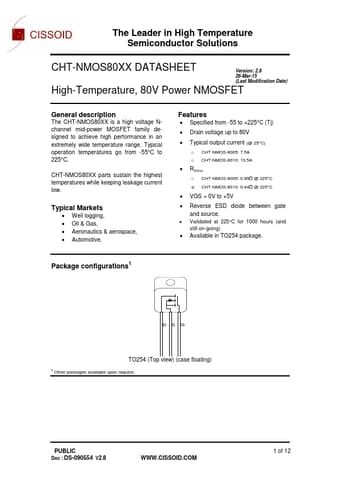

CHT-NMOS8005 Datasheet Preview — Preview of CHT-NMOS8005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CHT-NMOS8005
Manufacturer: CISSOID
File Size: 592.45 KB
Datasheet: CHT-NMOS8005-CISSOID.pdf
Description: 80V Power NMOSFET

CHT-NMOS8005 Product details

Description

The CHT-NMOS80XX is a high voltage Nchannel mid-power

Features

Specified from -55 to +225°C (Tj).
Drain voltage up to 80V.
Typical output current (@ 25°C) o CHT-NMOS-8005: 7.5A o CHT-NMOS-8010: 13.5A.
RDSon o CHT-NMOS-8005: 0.99@ 225°C o CHT-NMOS-8010: 0.44@ 225°C.
VGS = 0V to +5V.
Reverse ESD diode between gate and source.
Validated at 225°C for 1000 hours (and still on-going).
Available in TO254 package. Package configurations1 DSG TO254 (Top view) (case floating) 1 Other packages available upon request. PU.
