CHT-NMOS4010

40V N-channel Power MOSFET

CHT-NMOS4010 Features

* Specified from -55 to +225°C (Tj)

* Drain voltage up to 40V

* Typical output current: o CHT-NMOS-4005: 5A @ 25°C o CHT-NMOS-4010: 10A @ 25°C o CHT-NMOS-4020: 20A @ 25°C

* RDSon: o CHT-NMOS-4005: 0.65Ω @ 225°C o CHT-NMOS-4010: 0.36Ω @ 225°C o CHT-NMOS-4020: 0.25Ω @ 225°C

* VGS =

CHT-NMOS4010 General Description

The CHT-NMOS-40xx is a high voltage Nchannel power MOSFET family designed to achieve high performance in an extremely wide temperature range: typical operation temperature goes from -55°C to 225°C. CHT-NMOS40 parts sustain the highest temperatures while keeping leakage currents low. Markets
* Ae.

CHT-NMOS4010 Datasheet (599.13 KB)

Preview of CHT-NMOS4010 PDF

Datasheet Details

Part number:

CHT-NMOS4010

Manufacturer:

CISSOID

File Size:

599.13 KB

Description:

40v n-channel power mosfet.

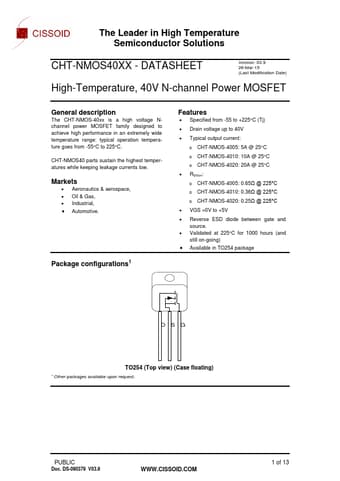

The Leader in High Temperature Semiconductor Solutions CHT-NMOS40XX - DATASHEET Version: 03.9 26-Mar-15 (Last Modification Date) High-Temperature, .
