CHT-NMOS8001 - N-Channel MOSFET

📥 Download Datasheet

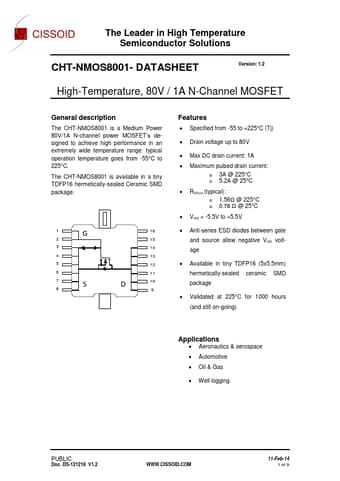

CHT-NMOS8001 Datasheet Preview — Preview of CHT-NMOS8001 PDF

Datasheet Details

Part number: CHT-NMOS8001
Manufacturer: CISSOID
File Size: 514.89 KB
Datasheet: CHT-NMOS8001-CISSOID.pdf
Description: N-Channel MOSFET

CHT-NMOS8001 Product details

Description

The CHT-NMOS8001 is a Medium Power 80V/1A N-channel power MOSFET’s designed to achieve high performance in an extremely wide temperature range: typical operation temperature goes from -55°C to 225°C.

Features

Specified from -55 to +225°C (Tj).
Drain voltage up to 80V.
Max DC drain current: 1A.
Maximum pulsed drain current: o 3A @ 225°C o 5.2A @ 25°C.
RDSon (typical): o 1.56Ω @ 225°C o 0.76 Ω @ 25°C.
VGS = -5.5V to +5.5V NC 1 NC 2 FB 3 FB 4 CEB 5 CEB 6 GND 7 GND 8 G SD VIN 16 NC.
Anti-series ESD diodes between gate 15 NC 14 VOUT 13 VOUT and source allow negative VGS voltage 12 VIN.
Available in tiny TDFP16 (5x5.5mm) 11 VIN 10 NC 9 NC hermetically-seal.
