3.0SMCJ8.5A, 3.0SMCJ5.0A - 3000W Surface Mount Transient Voltage Suppressors

CITC

📥 Download Datasheet

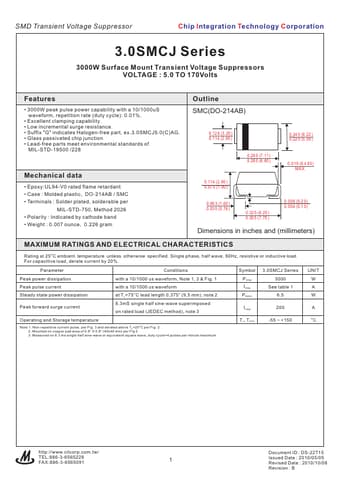

3.0SMCJ8.5A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3.0SMCJ8.5A, 3.0SMCJ5.0A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 3.0SMCJ8.5A, 3.0SMCJ5.0A
Manufacturer: CITC
File Size: 78.85 KB
Datasheet: 3.0SMCJ5.0A-CITC.pdf
Description: 3000W Surface Mount Transient Voltage Suppressors
Note: This datasheet PDF includes multiple part numbers: 3.0SMCJ8.5A, 3.0SMCJ5.0A.
Please refer to the document for exact specifications by model.

3.0SMCJ8.5A Product details

Features

3000W peak pulse power capability with a 10/1000uS waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Suffix "G" indicates Halogen-free part, ex.3.0SMCJ5.0(C)AG.
Glass passivated chip junction.
Lead-free parts meet environmental standards of MIL-STD-19500 /228 Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-214AB / SMC.
