BAS40-05, BAS40 - 200mA Surface Mount Small Signal Diodes

CITC

📥 Download Datasheet

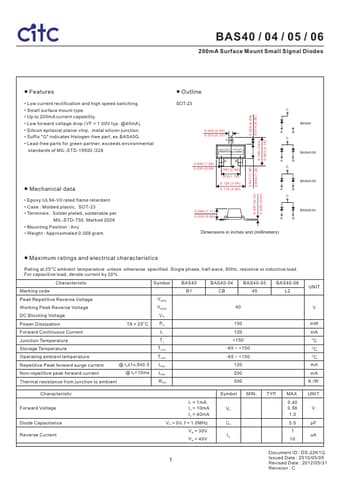

BAS40-05 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS40-05, BAS40. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BAS40-05, BAS40
Manufacturer: CITC
File Size: 153.49 KB
Datasheet: BAS40-CITC.pdf
Description: 200mA Surface Mount Small Signal Diodes
Note: This datasheet PDF includes multiple part numbers: BAS40-05, BAS40.
Please refer to the document for exact specifications by model.

BAS40-05 Product details

Features

s.
Low current rectification and high speed switching.
Small surface mount type.
Up to 200mA current capability.
Low forward voltage drop (VF = 1.00V typ. @40mA).
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. BAS40G.
Lead-free parts for green partner, exceeds environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
