BAS40 - 200mA Surface Mount Small Signal Diodes

CITC

📥 Download Datasheet

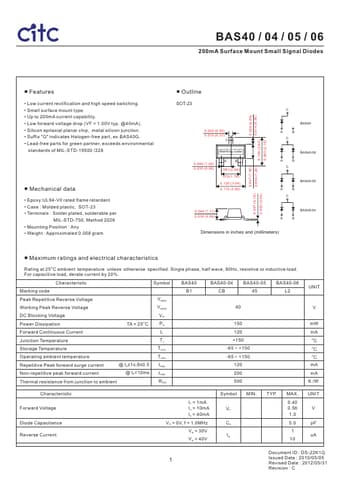

BAS40 Datasheet Preview — Preview of BAS40 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BAS40
Manufacturer: CITC
File Size: 153.49 KB
Datasheet: BAS40-CITC.pdf
Description: 200mA Surface Mount Small Signal Diodes

BAS40 Product details

Features

s.
Low current rectification and high speed switching.
Small surface mount type.
Up to 200mA current capability.
Low forward voltage drop (VF = 1.00V typ. @40mA).
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. BAS40G.
Lead-free parts for green partner, exceeds environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
