CSB10100CT-A - Super Low Barrier High Voltage Power Rectifier

Datasheet Summary

Features

  • s.
  • Low forward voltage drop.
  • Excellent high temperature stability.
  • Fast switching capability.
  • Suffix "G" indicates Halogen-free part, ex. CSB10100CTG-A.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228.
  • Mechanical data.
  • Epoxy : UL94-V0 rated flame retardant.
  • Case : Molded plastic, TO-263 / D2PAK.
  • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
  • Polarity: Indicated by cat.

📥 Download Datasheet

Datasheet preview – CSB10100CT-A

Datasheet Details

Part number CSB10100CT-A
Manufacturer CITC
File Size 100.06 KB
Description Super Low Barrier High Voltage Power Rectifier
Datasheet download datasheet CSB10100CT-A Datasheet

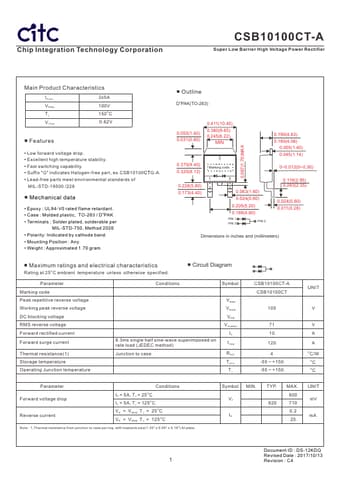

Additional preview pages of the CSB10100CT-A datasheet.
