CSB1058 - PNP EPITAXIAL PLANAR SILICON TRANSISTOR

Datasheet Summary

Description

SYMBOL VALUE Collector -Base Voltage BVCBO 20 Collector Emitter Voltage BVCEO 16 Emitter Base Voltage BVEBO 6.0 Collector Current IC 2.0 Collector Power Dissipation PC 0.75 Operating And Storage Junction Tj, Tstg -55 to +150 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 d

📥 Download Datasheet

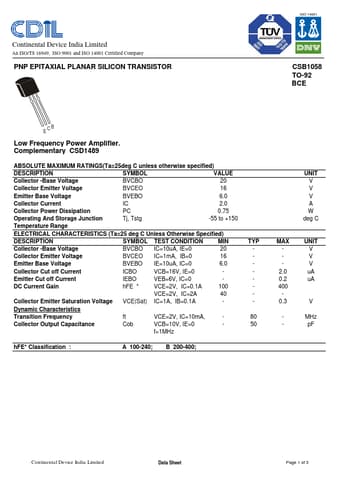

Datasheet preview – CSB1058

Datasheet Details

Part number CSB1058
Manufacturer CDIL
File Size 96.90 KB
Description PNP EPITAXIAL PLANAR SILICON TRANSISTOR
Datasheet download datasheet CSB1058 Datasheet
Additional preview pages of the CSB1058 datasheet.

📁 Similar Datasheet

  • CSB1050 - High Current Power Inductor (CODACA)
  • CSB10100CT-A - Super Low Barrier High Voltage Power Rectifier (CITC)
  • CSB11 - TCXO (Connor-Winfield)
  • CSB12 - TCXO (Connor-Winfield)
  • CSB1260 - High Current Power Inductor (CODACA)
  • CSB1370 - PNP Silicon Epitaxial Power Transistor (Continental Device)
  • CSB1370E - Power Transistors (RECTRON)
  • CSB16C04 - 16 AMPS. SCHOTTKY BARRIER RECTIFIERS (Chino-Excel Technology)
  • CSB1809 - High Current Power Inductor (CODACA)
  • CSB0630 - High Current Power Inductor (CODACA)
Other Datasheets by CDIL
  • CSB507 - PNP / NPN PLASTIC POWER TRANSISTOR
  • CSB507 - PNP / NPN PLASTIC POWER TRANSISTOR
  • CSB546 - PNP PLASTIC POWER TRANSISTOR
  • CSB764 - EPITAXIAL PLANAR SILICON TRANSISTORS
  • CSB772 - Audio Frequency Power Amplifier and Low Speed Switching
  • CSB834 - PNP SILICON POWER TRANSISTOR
  • CSB856 - PNP SILICON POWER TRANSISTOR
  • CSB857 - (CSB857 / CSB858) PNP/NPN SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text
Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company PNP EPITAXIAL PLANAR SILICON TRANSISTOR CSB1058 TO-92 BCE ECB Low Frequency Power Amplifier. Complementary CSD1489 ABSOLUTE MAXIMUM RATINGS(Ta=25deg C unless otherwise specified) DESCRIPTION SYMBOL VALUE Collector -Base Voltage BVCBO 20 Collector Emitter Voltage BVCEO 16 Emitter Base Voltage BVEBO 6.0 Collector Current IC 2.0 Collector Power Dissipation PC 0.
