CSB507 Datasheet - CDIL

CSB507 PNP / NPN PLASTIC POWER TRANSISTOR

Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company TO-220 Plastic Package CSB507, CSD313 CSB507 CSD313 www.DataSheet4U.com PNP PLASTIC POWER TRANSISTOR NPN PLASTIC POWER TRANSISTOR Low frequency Power Amplifier Applications PIN CONFIGURATION 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR 4 1 2 3 B H F C E DIM A B C D E F G H J K L M N O M IN. 14.42 9.63 3.56 M A X. N L O 1 2 3 D G J M 16.51 10.67 4.83 0.90 1.15 1.40 3.75 3.88 2.29 2.79 2..

CSB507_CDIL.pdf

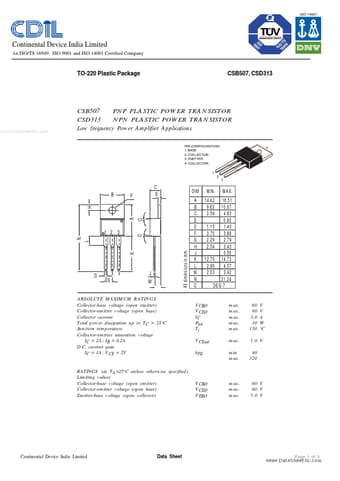

Preview of CSB507 PDF
CSB507 Datasheet Preview Page 2 CSB507 Datasheet Preview Page 3

Datasheet Details

Part number:

CSB507

Manufacturer:

CDIL

File Size:

158.78 KB

Description:

Pnp / npn plastic power transistor.
