CSB0650 High Current Power Inductor

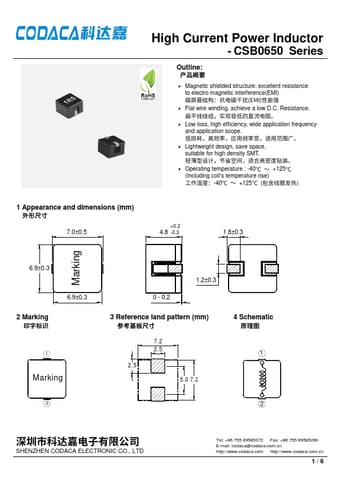

High Current Power Inductor - CSB0650 Series Outline: Magnetic shielded structure: excellent resistance to electro magnetic interference(EMI) Flat wire winding, achieve a low D.C. Resistance. Low loss, high efficiency, wide application frequency and application scope. Lightweight design, save space, suitable for high density SMT. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 1 Appearance and dimensions (mm) 7.0±0.5 +0.2 4.8 -0.3 1.8±0.3 Marking .
