CSB1809 Datasheet - CODACA

CSB1809 High Current Power Inductor

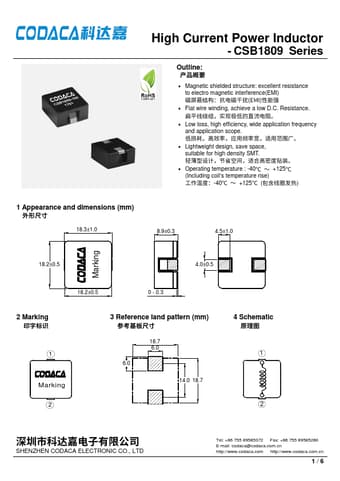

High Current Power Inductor - CSB1809 Series Outline: Magnetic shielded structure: excellent resistance to electro magnetic interference(EMI) Flat wire winding, achieve a low D.C. Resistance. Low loss, high efficiency, wide application frequency and application scope. Lightweight design, save space, suitable for high density SMT. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 1 Appearance and dimensions (mm) 18.3±1.0 8.9±0.3 4.5±1.0 Marking 18.2±.

CSB1809-CODACA.pdf

Preview of CSB1809 PDF
CSB1809 Datasheet Preview Page 2 CSB1809 Datasheet Preview Page 3

Datasheet Details

Part number:

CSB1809

Manufacturer:

CODACA

File Size:

1.40 MB

Description:

High current power inductor.
