CSB0630 Datasheet - CODACA

CSB0630 High Current Power Inductor

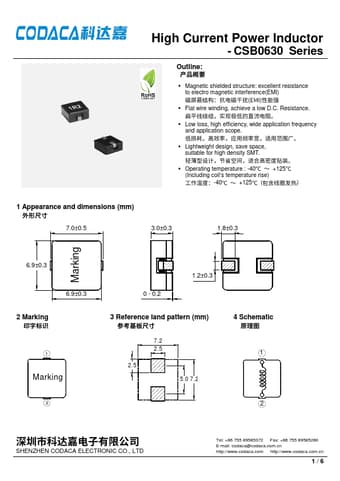

High Current Power Inductor - CSB0630 Series Outline: Magnetic shielded structure: excellent resistance to electro magnetic interference(EMI) Flat wire winding, achieve a low D.C. Resistance. Low loss, high efficiency, wide application frequency and application scope. Lightweight design, save space, suitable for high density SMT. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 1 Appearance and dimensions (mm) 7.0±0.5 3.0±0.3 1.8±0.3 Marking 6.9±0.

CSB0630 Datasheet (0.98 MB)
