GBP306 Features
* Ideal for printed circuit board.
* High forward surge current capability.
* Glass passivated chip junction.
* Suffix "G" indicates Halogen-free part.
* Lead free in compliance with EU RoHS.
* Mechanical data
* Epoxy:UL94V-0 rated flame retardant

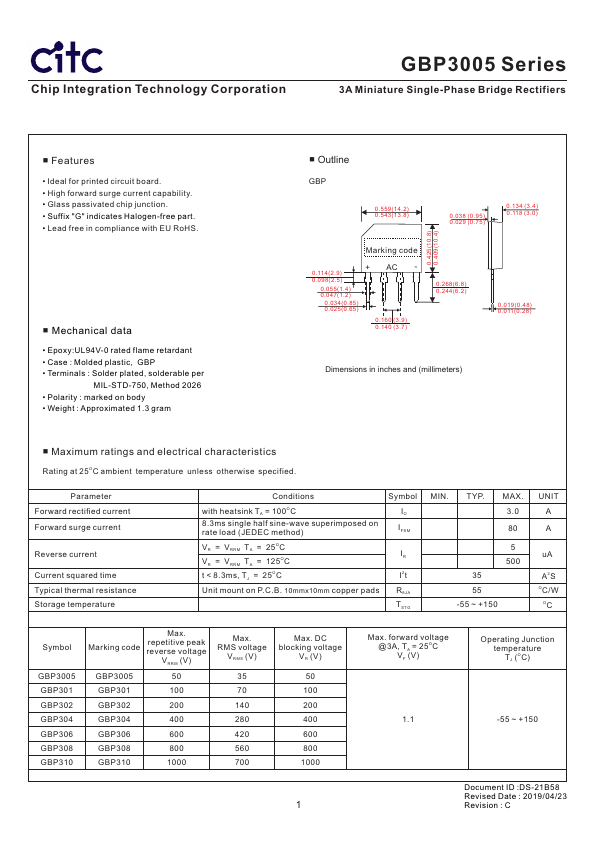

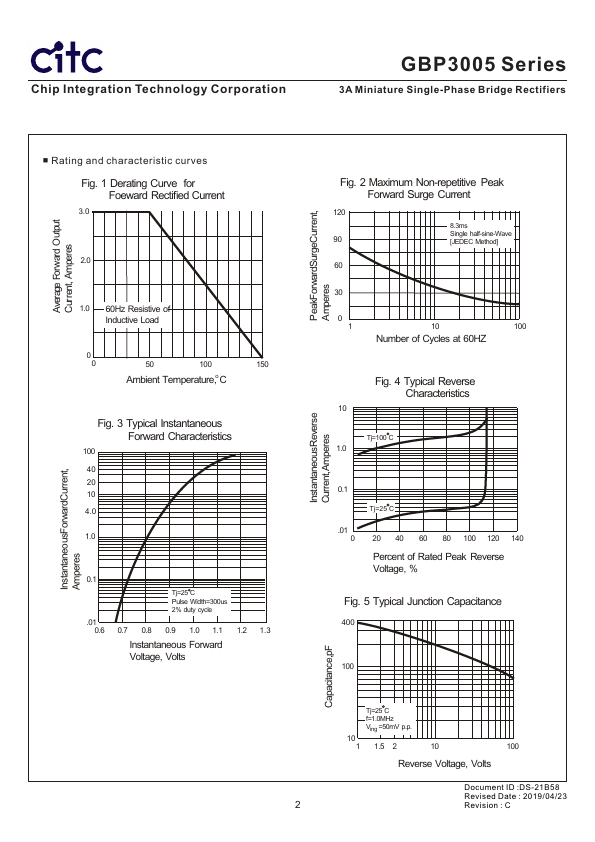

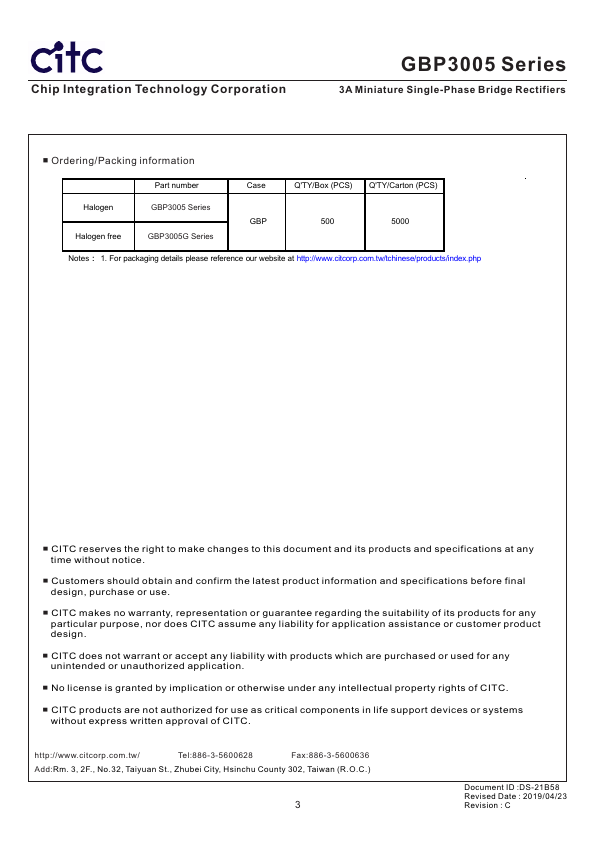

Datasheet Details
GBP306, GBP3005
CITC
465.12 KB
3a miniature single-phase bridge rectifiers.
This datasheet PDF includes multiple part numbers: GBP306, GBP3005.
Please refer to the document for exact specifications by model.
