T0524SP Ultra-Low Capacitance ESD Protection Device

T0524SP Description

Chip Integration Technology Corporation T0524SP Ultra-Low Capacitance ESD Protection Device .
T0524SP is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for highspeed data.

T0524SP Applications

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±25kV (Air) ±17kV (Contact) IEC 61000-4-4 (EFT) 40A (5/50 ns) Cable Discharge Event (CDE)
* Package optimized for high-speed lines
* Ultra-small package (2.5mmx1.0mmx0.55mm)
* Protectssix data lines

📥 Download Datasheet

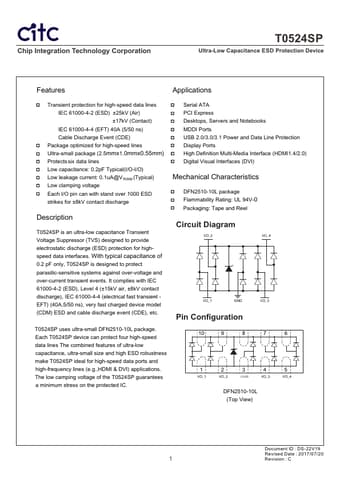

Preview of T0524SP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
T0524SP
Manufacturer
CITC
File Size
525.88 KB
Datasheet
T0524SP-CITC.pdf
Description
Ultra-Low Capacitance ESD Protection Device
