UF5005

5A Leaded Type Ultra Fast Rectifiers

UF5005 Features

* Axial lead type devices for through hole design.

* High current capability.

* Ultrafast recovery time for switching mode application.

* High surge current capability.

* Glass passivated chip junction.

* Suffix "G" indicates Halogen free parts, ex. UF

UF5005 Datasheet (82.73 KB)

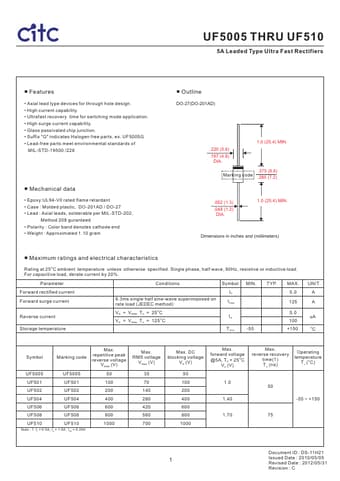

Preview of UF5005 PDF

Datasheet Details

Part number:

UF5005

Manufacturer:

CITC

File Size:

82.73 KB

Description:

5a leaded type ultra fast rectifiers.
