UF506, UF5005 - 5A Leaded Type Ultra Fast Rectifiers

CITC

📥 Download Datasheet

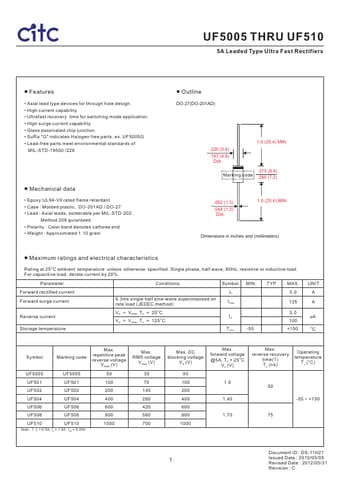

UF506 Datasheet Preview — This datasheet PDF includes multiple part numbers: UF506, UF5005. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: UF506, UF5005
Manufacturer: CITC
File Size: 82.73 KB
Datasheet: UF5005-CITC.pdf
Description: 5A Leaded Type Ultra Fast Rectifiers
Note: This datasheet PDF includes multiple part numbers: UF506, UF5005.
Please refer to the document for exact specifications by model.

UF506 Product details

Features

s.
Axial lead type devices for through hole design.
High current capability.
Ultrafast recovery time for switching mode application.
High surge current capability.
Glass passivated chip junction.
Suffix "G" indicates Halogen free parts, ex. UF5005G.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-201AD / DO-.
