CM2020 - HDMI TRANSMITTER PORT PROTECTION AND INTERFACE DEVICE

CM2020 Description

www.DataSheet4U.com CM2020 HDMI Transmitter Port Protection and Interface Device .
The CM2020 HDMI Transmitter Port Protection and Interface Device is specifically designed for next generation HDMI Host interface protection.

CM2020 Features

* 0.05pF matching capacitance between the TMDS intra-pair Overcurrent output protection Level shifting circuitry, including ±8kV ESD protection on all TMDS lines Matched 0.5mm trace spacing (TSSOP) Simplified layout for HDMI connectors Backdr

CM2020 Applications

* PC Consumer Electronics Set Top Box Displays and Digital Television Electrical Schematic TMDS_VDD 5V_SUPPLY TMDS_D2+ TMDS_GND TMDS_D2TMDS_D1+ TMDS_GND TMDS_D1TMDS_D0+ TMDS_GND TMDS_D0TMDS_CK+ TMDS_GND TMDS_CK- 3.3V SUPPLY TMDS_VDD 3.3V SUPPLY TMDS_VDD CE

📥 Download Datasheet

Preview of CM2020 PDF

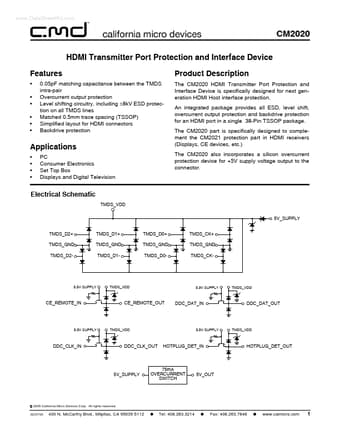

datasheet Preview Page 2 datasheet Preview Page 3
