CM2026 - DUAL USB POWER CONTROL SWITCH

CM2026 Description

CM2026 DUAL USB POWER CONTROL SWITCH GENERAL .
FEATURES The CM2026 is a dual integrated high-side power switch with independent enable and flag functions, optimized for self-powered and bus-power.

CM2026 Applications

* Few external components are necessary to satisfy USB requirements. The CM2026 satisfies the following USB requirements: each switch channel supplies up to 500mA as required by USB downstream devices; the switch's low on-resistance meets USB voltage drop requirements; fault current is limited to typ

📥 Download Datasheet

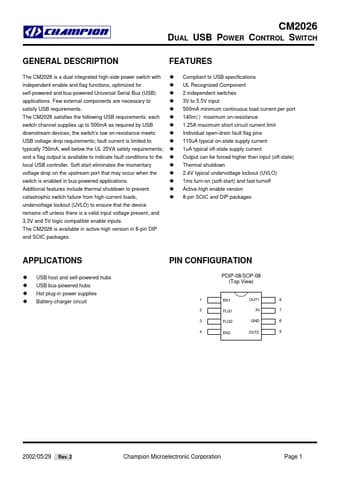

Preview of CM2026 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CM2026
Manufacturer
Champion
File Size
195.69 KB
Datasheet
CM2026-Champion.pdf
Description
DUAL USB POWER CONTROL SWITCH
