MX589

single-chip synchronous modem

MX589 Features

* Data Rates from 4kbps to 64kbps

* Full or Half Duplex Gaussian Minimum Shift Keying (GMSK) Operation

* Selectable BT: (0.3 or 0.5)

* Low Power 3.0V, 20kbps, 1.5mA typ. 5.0V, 64kbps, 4.0mA typ.

* Low Current Non-DSP Solution

* Small TSSOP size fits PC

MX589 General Description

4.1 Clock Oscillator Divider 7 4.2 Receive 7 4.2.1 Rx Signal Path Description7 4.2.2 Rx Circuit Control Modes 8 4.2.3 Rx Clock Extraction 9 4.2.4 Rx Data Extraction9 4.2.5 Rx S/N Detection 10 4.2.6 Rx Signal Quality 10 4.3 Transmit 11 4.3.1 TX Signal Path Description 11 4.4 Data Formats 13 4.5 Acqu.

MX589 Datasheet (163.32 KB)

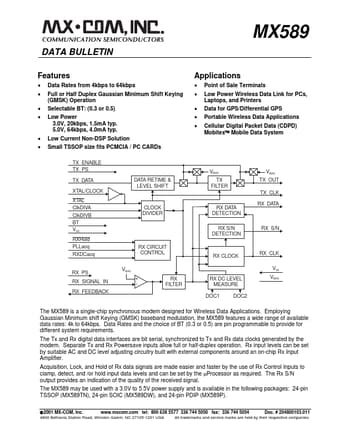

Preview of MX589 PDF

Datasheet Details

Part number:

MX589

Manufacturer:

CML

File Size:

163.32 KB

Description:

Single-chip synchronous modem.
