CMT2210LC - Low Power 315/433.92 MHz OOK Receiver

Datasheet Summary

Description

CMT2210LC, low power 315/433.92 MHz U1 OOK receiver X1 ±20 ppm, SMD32 25 mm, crystal L1 ±5%, 0603 multi-layer chip inductor C0 ±0.25 pF, 0402 NP0, 50 V C1 ±0.25 pF, 0402 NP0, 50 V ±5%, 0603 multi-layer chip inductor, L2 optional C2 ±0.25 pF, 0402 NP0, 50 V, optional C3 ±20%, 0402

Features

  • Operation Frequency: 315 / 433.92 MHz.
  • OOK Demodulation.
  • Data Rate: 1.0 - 5.0 kbps.
  • Sensitivity: -109 dBm (3.0 kbps, 0.1％ BER).
  • Receiver Bandwidth: 330 kHz.
  • Large Signal Handling: 10 dBm.
  • Periodically operating (2s/3ms), no external MCU control required.
  • No Register Configuration Required.
  • Suppy voltage: 1.8 -3.6 V.
  • Low Power Consumption:.
  • 3.3 mA @ 315 MHz.
  • 3.8 mA @ 433.92 MHz.
  • RoHS Compliant.
  • DesScOrPi8pPtaiocknagse The CMT22.

📥 Download Datasheet

Datasheet preview – CMT2210LC

Datasheet Details

Part number CMT2210LC
Manufacturer CMOSTEK
File Size 708.22 KB
Description Low Power 315/433.92 MHz OOK Receiver
Datasheet download datasheet CMT2210LC Datasheet
Additional preview pages of the CMT2210LC datasheet.

📁 Similar Datasheet

Other Datasheets by CMOSTEK
  • CMT2210LCW - Low Power 315/433.92 MHz OOK Receiver
  • CMT2210L - Low-Cost 315/433.92 MHz OOK Stand-Alone Receiver
  • CMT2210LB - OOK Standalone RF Receiver
  • CMT2210LH - Low Power 315MHz/433.92MHz OOK Receiver
  • CMT2210LW - Low-Cost 315/433.92MHz OOK Stand-Alone Receiver
  • CMT2210A - Low-Cost 300 - 960 MHz OOK Stand-Alone RF Receiver
  • CMT2210AW - Low-Cost 300 - 960MHz OOK Stand-Alone RF Receiver
  • CMT2213AW - Low-Cost 300 - 480MHz (G)FSK/OOK Stand-Alone RF Receiver

Full PDF Text Transcription

Click to expand full text

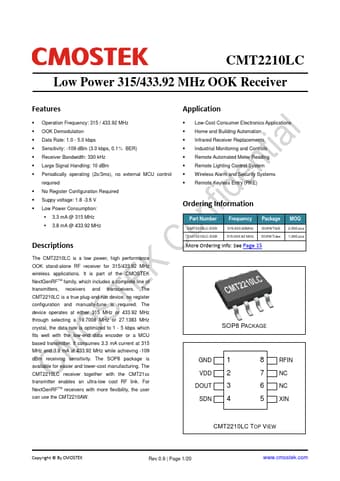

CMT2210LC CMT2210LC Low Power 315/433.92 MHz OOK Receiver Features  Operation Frequency: 315 / 433.92 MHz  OOK Demodulation  Data Rate: 1.0 - 5.0 kbps  Sensitivity: -109 dBm (3.0 kbps, 0.1％ BER)  Receiver Bandwidth: 330 kHz  Large Signal Handling: 10 dBm  Periodically operating (2s/3ms), no external MCU control required  No Register Configuration Required  Suppy voltage: 1.8 -3.6 V  Low Power Consumption:  3.3 mA @ 315 MHz  3.8 mA @ 433.92 MHz  RoHS Compliant DesScOrPi8pPtaiocknagse The CMT2210LC is a low power, high performance OOK stand-alone RF receiver for 315/433.92 MHz wireless applications. It is part of the CMOSTEK NextGenRFTM family, which includes a complete line of transmitters, receivers and transceivers.
