CMT20N50 Power MOSFET

CMT20N50 Description

CMT20N50 POWER FIELD EFFECT TRANSISTOR GENERAL .
FEATURES This high voltage MOSFET uses an advanced termination ! scheme to provide enhanced voltage-blocking capability ! without degrading perfo.

CMT20N50 Features

* This high voltage MOSFET uses an advanced termination ! scheme to provide enhanced voltage-blocking capability ! without degrading performance over time. In addition, this ! advanced MOSFET is designed to withstand high energy in avalanche and commutation modes. The new energy ! efficient de

CMT20N50 Applications

* in power supplies, converters and PWM motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional and safety margin against unexpected voltage transients. Robust High Voltage Termination

📥 Download Datasheet

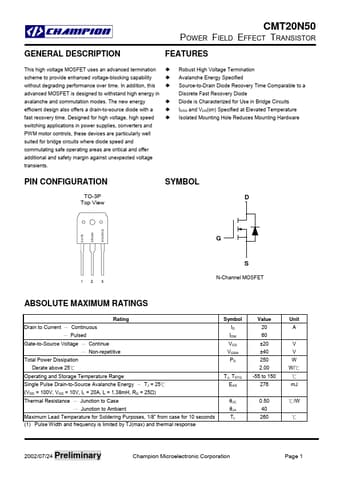

Preview of CMT20N50 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMT20N50
Manufacturer
Champion
File Size
164.24 KB
Datasheet
CMT20N50-Champion.pdf
Description
Power MOSFET
